Maitinimo blokas (PSU)
CHIEFTEC ECO Series 500W ATX-12V V.2.3

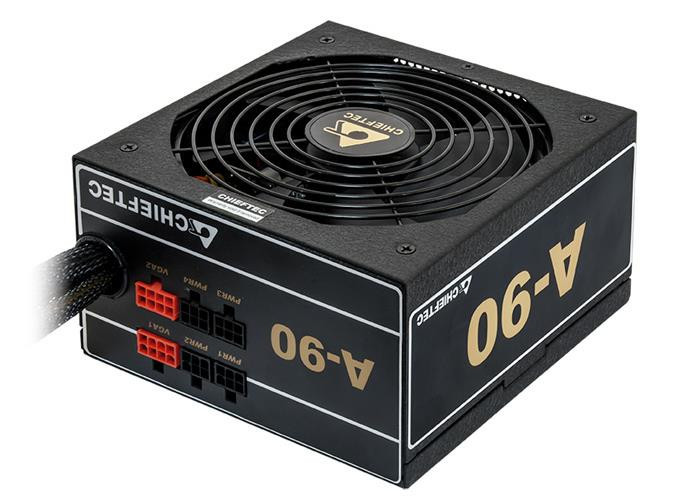

Prekė gali skirtis nuo pavaizduotos paveikslėlyje, taip pat paveikslėlyje gali būti dalių, kurių nėra prekės komplektacijoje.
Prekės kodas: #24465
Garantija: 24 mėn.
Aprašymas
The name ECO stands for maximum efficiency, ecological values and a era of power supplies. Compatible with all current standards and certified by TÜV amongst many others and with a fixed voltage of 230V being the European standard, the ECO series is a reliable and efficient companion for modern IT structures which thereby also fulfills all ENERGY STAR 5.0 requirements as stipulated by the EU.
-
Informacija apie prekę
-
Papildoma informacija
Gamintojas |
CHIEFTEC |
Maitinimo bloko galingumas (W) |
500 W - 600 W |
ATX12V VERSION |
2.3 |
DEPTH (cm) |
14 |
HEIGHT (cm) |
8.7 |
MOLEX |
2 |
MOTHERBOARD CONNECTOR |
24pin |
PCI-E VGA POWER CONNECTORS |
1 x 6pin |
PFC |
Active |
POWER SUPPLY OUTPUT |
500 W |
PRODUCT DESCRIPTION |
The name ECO stands for maximum efficiency, ecological values and a new era of power supplies. Compatible with all current standards and certified by TÜV amongst many others and with a fixed voltage of 230V being the European standard, the ECO series is a reliable and efficient companion for modern IT structures which thereby also fulfills all ENERGY STAR 5.0 requirements as stipulated by the EU. |
PSU FAN SIZE |
12 cm |
SATA CONNECTORS |
4 |
WIDTH (cm) |
15 |
PRODUCT DESCRIPTION |
Chieftec ECO Series GPE-500S - power supply - 500 Watt
|
Device Type |
Power supply - active Power Factor Correction (PFC) - internal
|
Specification Compliance |
ATX12V 2.3
|
Input Voltage |
AC 230 V
|
Output Voltage |
+3.3, +5, ±12 V
|
Power Capacity |
500 Watt
|
Output connectors |
1 x power 24 pin ATX
4 x 15 pin Serial ATA power
2 x 4 PIN internal power
1 x 8 pin PCI Express power with detachable 2 pin section
1 x power 4 pin ATX12V connector
|
Cooling System |
120 mm fan
|
Dimensions (WxDxH) |
15 cm x 14 cm x 8.6 cm
|
Environmental Standards |
ENERGY STAR
|
Manufacturer Warranty |
2-year warranty
|
