Aprašymas

"LANCOM YS-7154CF-B2F. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45. Full duplex. MAC address table: 32000 entries. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x. Power connector: AC-in jack. Rack mounting, Form factor: 1U"\n"25G stackable fiber aggregation switch for campus networks

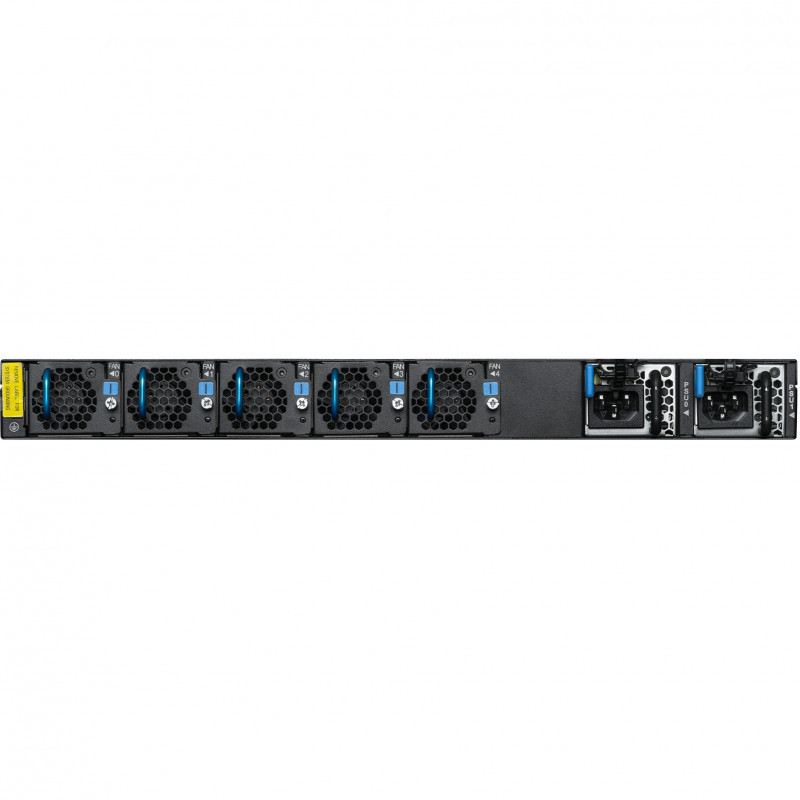

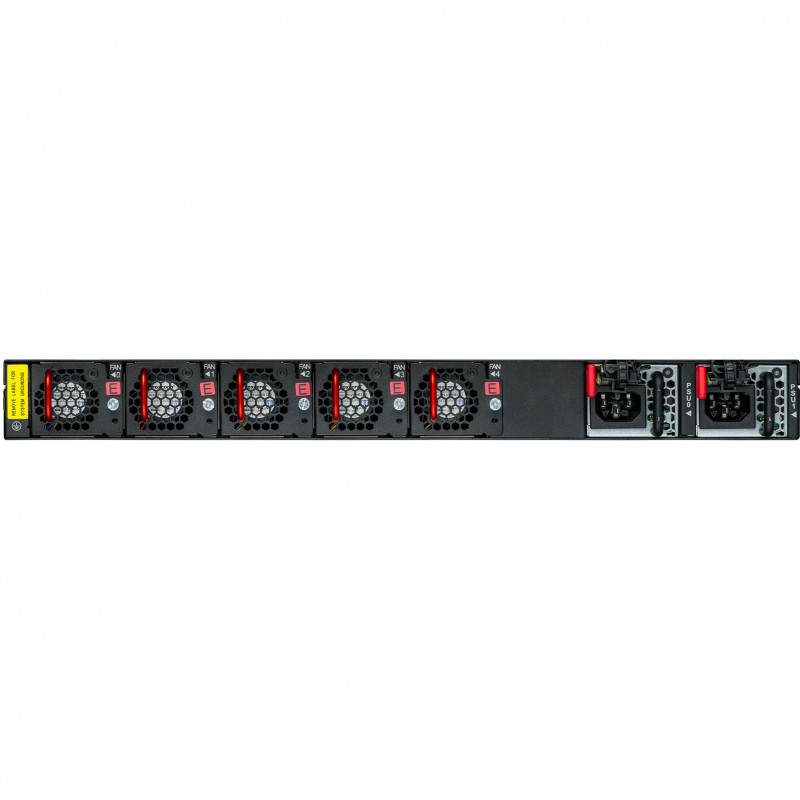

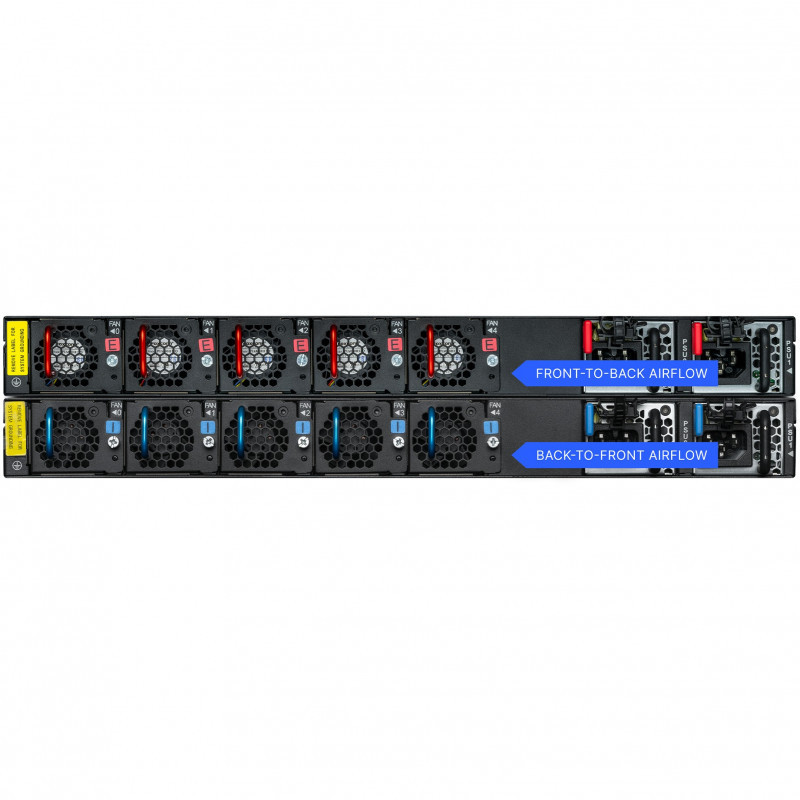

In data-intensive, distributed campus networks, the LANCOM YS-7154CF ensures the necessary performance and high availability of network resources. With 48x 25G SFP28 and 6x 100G QSFP28 ports, the switch offers maximum connection flexibility in mixed 1G-100G environments, providing a total of 3.6 Tbps switch capacity. Depending on the size of the installation, the LANCOM YS-7154CF can be integrated either as an aggregation switch (distribution base) between core and access switches (three-tier design) or as a core switch resp. “collapsed backbone” at the top level to the WAN (two-tier design) to create hierarchical switch infrastructures. Reliable, high-performance operation even in bandwidth-intensive networks is ensured by Virtual Port Channel (VPC) or stacking. Additional fail-safety is provided by two redundant power supply units, five hot-swappable fan modules, and a selectable cooling concept. Centralized network management with real-time monitoring of the device status is automated and location-independent via the LANCOM Management Cloud or using the industry-standard web GUI and CLI."
