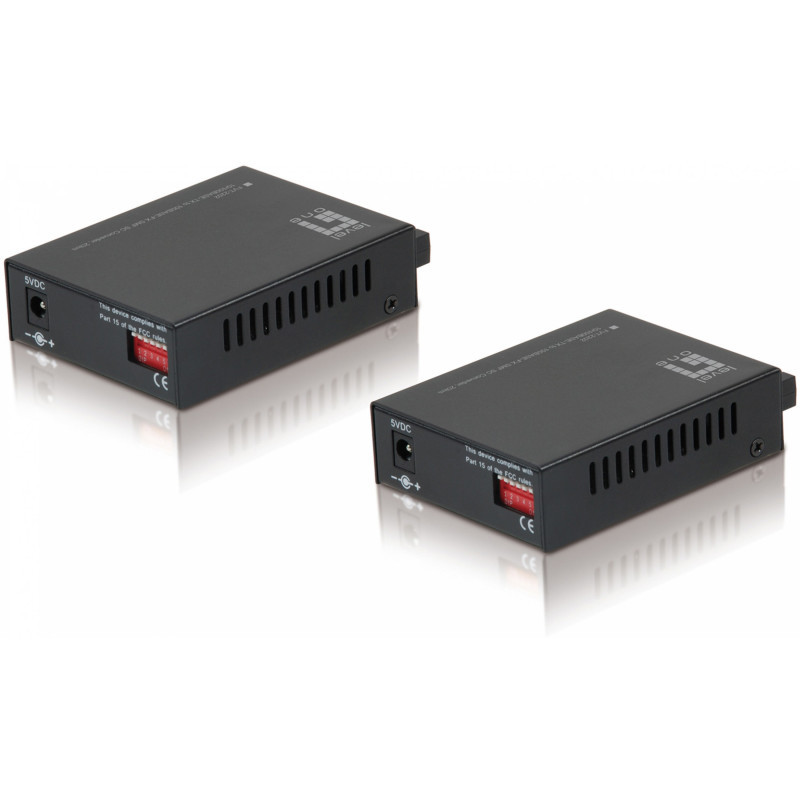

"LevelOne RJ45 to SC BIDI Fast Ethernet Media Converter Set, Single-Mode Fiber, 20km. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Fast Ethernet. Maximum transfer distance: 20000 m, Fiber cable diameters supported (core/cladding): 8.3/125,9/125,10/125 µm. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SX, Connectivity technology: Wired. Input voltage: 5 V, Input current: 1 A"\n"FVT-2202 Fast Ethernet Media Converter Set is ideally designed for connecting two copper wire networks over long distances via fiber optical communication. Featuring Bi-directional (BIDI) fiber optic interface with SC connector allows data transfer in either direction through a single optical fiber by employing separate wavelengths travelling in either direction. Used in single-mode with fibre-optic cabling, this can extend a network range up to 20km.

Transfers data from 10/100Base-TX copper to fiber interfaces

Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology

Dip switches for customized configuration

Supports low-time lag transmission

Supports the transmission of extra-long packets up to 1.6KB

-10°C to 55°C operating temperature range

Single-mode fiber with BIDI SC connector for transmission of up to 20km"
