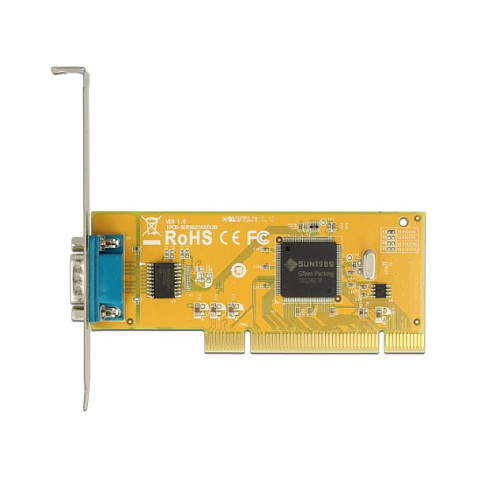

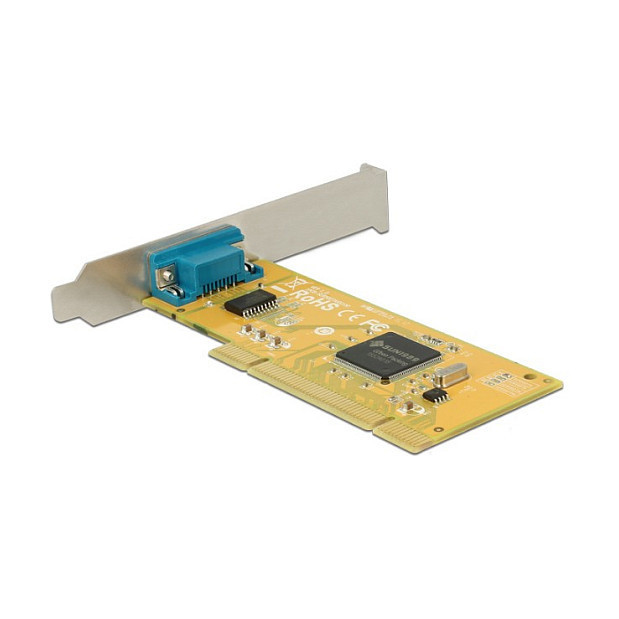

"DeLOCK 89592. Host interface: PCI, Output interface: RS-232, Expansion card standard: PCI 3.0. Product colour: Silver, Purpose: PC. Chipset: Sunix1989, Data transfer rate (max): 0.001152 Gbit/s, FIFO (First In, First Out): 128 B. Windows operating systems supported: Windows 10, Windows 7, Windows 8.1. Width: 51 mm, Depth: 120 mm, Height: 6.6 mm"\n"This PCI card by Delock expands a PC by one external serial port. Different devices such as scanner, printer, mouse etc. can be connected to this card. By using the included low profile bracket, the PCI card can be also installed into a Mini-PC.

- Connectors: external: 1 x serial RS-232 DB9 male, internal: 1 x 32-Bit PCI standard 3.0.
- Chipset: SUN1989.
- Compliance with PCI 33 MHz Ver. 3.0/2.3/2.2./2.1 specification.
- Supports both 64-bit & 32-bit PCI bus slots and 3.3 V & 5 V power.
- Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI.
- ±2 kV ESD protection for all serial signals.
- Data transfer rate up to 115.2 Kb/s.
- FIFO: 128 byte.
- Compatible with 16C950 UART.
- Operating temperature: 0 °C ~ 60 °C.
- Humidity: 5 ~ 95 %."
