Aprašymas

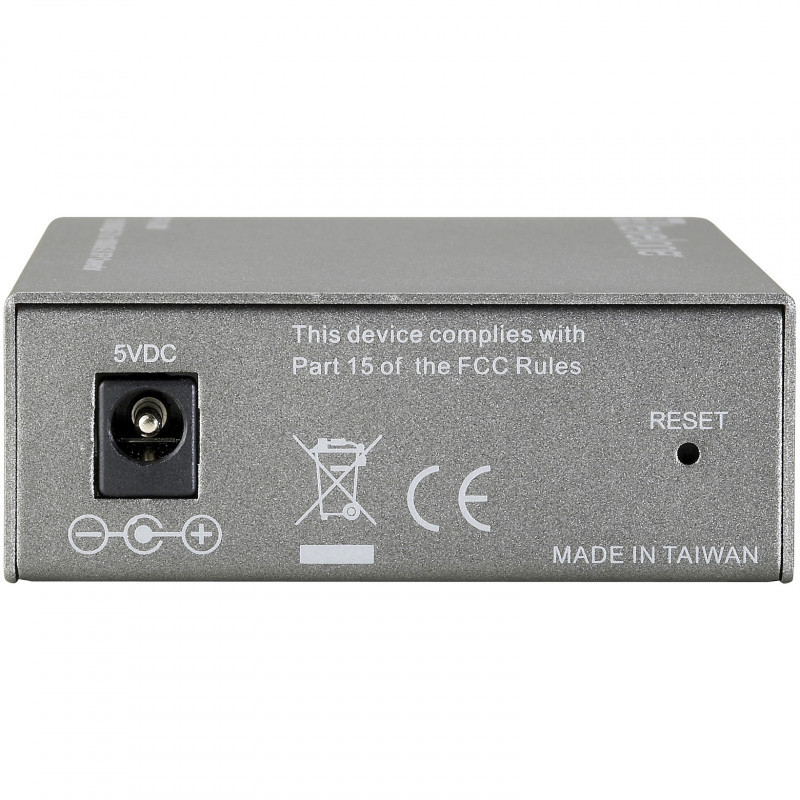

"LevelOne RJ45 to SC Managed Fast Ethernet Media Converter, Single-Mode Fiber, 20km. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, Converter output interface: 100Base-LX. Maximum transfer distance: 20000 m, Fiber mode structure: Single-mode, Fiber cable diameters supported (core/cladding): 3/125,8.7/125,9/125,10/125 µm. Product colour: Grey. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 5 V, Input current: 1 A, Power consumption (typical): 1.5 W"\n"The LevelOne Web Smart Media Converter FVS-3120 is designed to make conversion between
10/100BASE-TX and 100BASE-LX SMF SC Ethernet.

With web-based management, the network administrator can logon to the converter remotely to monitor, configure and control the status of each unit. The overall network reliability is enhanced, and the network efficiency is also improved to accommodate and deliver high bandwidth applications.

- HTTP Management with remote firmware upgrade supported
- ICMP and ARP protocols supported
- DHCP Client for easy IP address setup
- LLR (Link Loss Return) supported
- IEEE 802.1Q VLAN and Double VLAN (Q-in-Q) supported
- Support 802.3x Flow Control to prevent lost data by controlling the device flow loading"
