Maršrutizatorius (Router)

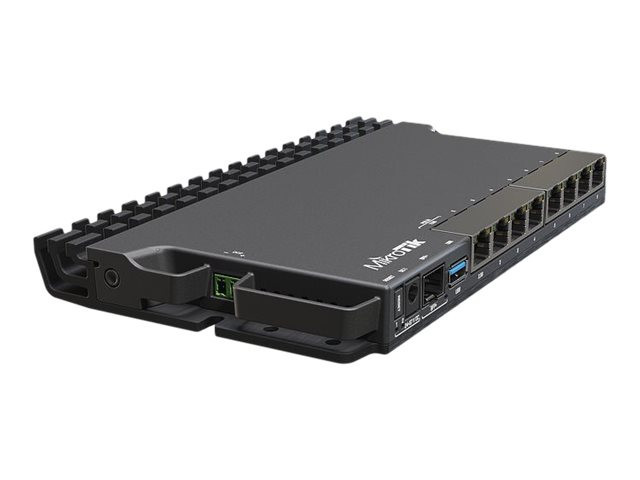

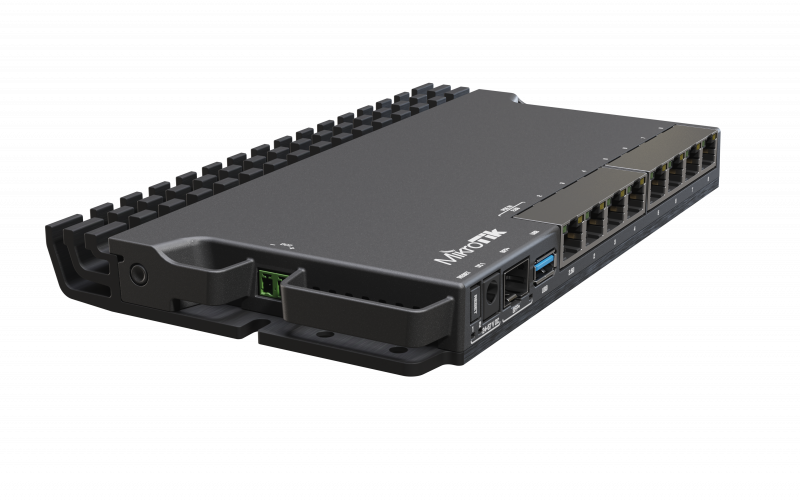

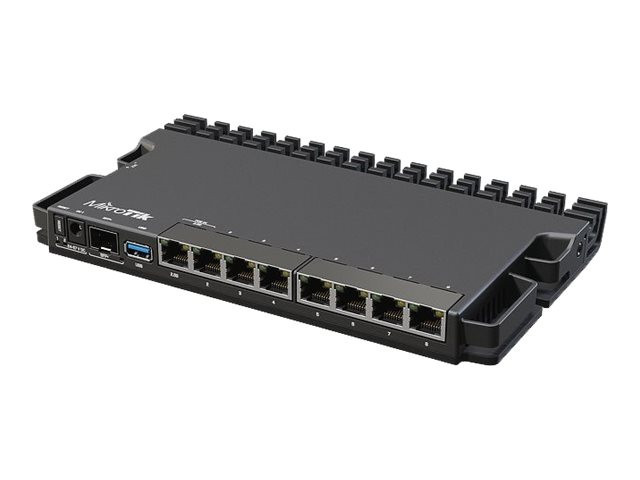

MikroTik Wired Ethernet Router RB5009UG+S+IN, Quad core 1.4 GHz CPU, 1xSFP+, 7xGigabit LAN, 1x2.5G LAN, 1xUSB, Can be powered in 3 different ways, CPU temperature monitor, Mounts FOUR of these Routers in a Single 1U Rackmount Space, RouterOS L5 | Wired Ethernet Router | RB5009UG+S+IN | No Wi-Fi | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 7 | Mesh Support No | MU-MiMO No | No mobile broadband | 1 | 12 month(s)
Prekė gali skirtis nuo pavaizduotos paveikslėlyje, taip pat paveikslėlyje gali būti dalių, kurių nėra prekės komplektacijoje.
Prekės kodas: #516724
Garantija: 12 mėn.
-
Informacija apie prekę
-
Papildoma informacija
Embeeded battery |
No |
WEEE tax |
Yes |
WEE classification |
CL109:6:2017-04-01 |
Neto svoris |
0.6 |
Tare weight (kg) |
0.35 |
Volume (m3) |
0.00429 |
Paper/Pasteboard |
315 |
Plastic (No PET) |
35 |
Garantija |
12 |
Kiekis pakuotėje |
1.00 |
Integruota baterija |
No |
EEĮ atliekų mokestis |
Yes |
EEĮ klasifikacija |
CL109:6:2017-04-01 |
Taros svoris (kg) |
0.35 |
Pakuotės gylis (mm) |
120 |
Pakuotės plotis (mm) |
65 |
Pakuotės aukštis (mm) |
550 |
Tūris (m3) |
0.00429 |
Popierius/Kartonas |
315 |
Plastikas (be PET) |
35 |
Gamintojo prekės modelio pavadinimas |
RB5009UG+S+IN |
Gamintojo prekės serija |
The ultimate heavy-duty home lab router with USB 3.0, 1G and 2.5G Ethernet and a 10G SFP+ cage |
Procesoriaus modelis |
88F7040 |
Bendroji laikmenos talpa |
1 |
PoE in |
802.3af/at |
CPU frequency |
350-1400 (auto) MHz |
Energijos suvartojimas (maks.) |
20 |
Darbo temperatūra (T-T) |
-40°C to 60°C |
Įtampa |
24-57 V |
SFP+ prievadų kiekis |
1 |
Ethernet LAN (RJ-45) prievadai |
7 |
Programinės įrangos tipas |
RouterOS (v7 only) |
USB prievadų kiekis |
1 |
Kitos savybės |

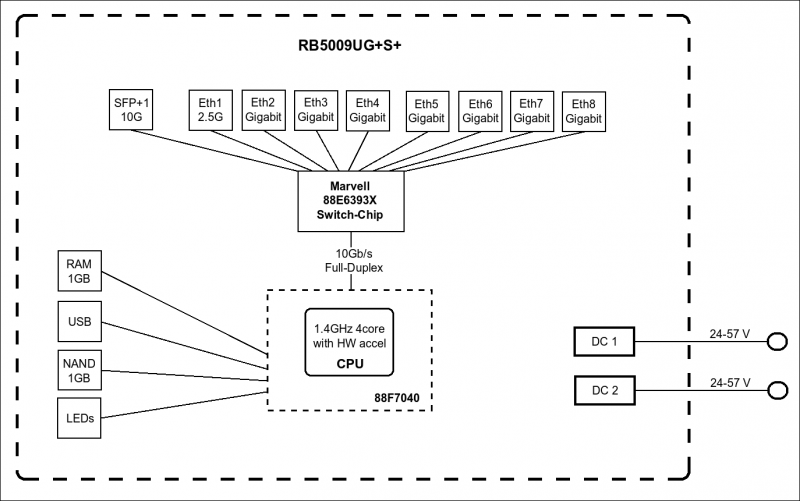

Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more! The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink! RB5009UG+S+IN can be powered in 3 different ways: a) PoE-in from Ethernet port #1 b) DC Jack c) 2-pin terminal on the side Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads. With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity. |
Atstatymo mygtukas |
Yes |
USB versija |
USB 3.0 type A |
Gamintojo prekės serija |
Wired Ethernet Router |
Įtampa |
(PoE in input Voltage) 24-57 |
"Ethernet" vietinio tinklo duomenų perdavimo greitis |
10/100/1000 |
Wi-Fi juosta |
No Wi-Fi |
Mesh Support |
No |
Mobile broadband |
No mobile broadband |
MU-MiMO |
No |
Antenų kiekis |
No antenna |
Procesoriaus dažnis |
1400 |
Procesoriaus branduoliai |
4 |
Belaidis ryšys |
No |
Sertifikatas |
CE, EAC, ROHS |
Vidinė atmintis |
1000 |
Saugyklos talpa |
1000 |
Atminties tipas |
NAND |
AC adapteris pridėtas |

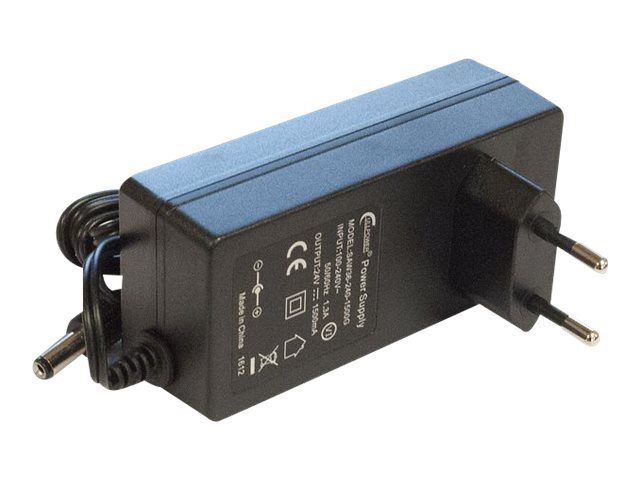

Yes (24V 1.5A power adapter) |
