Aprašymas

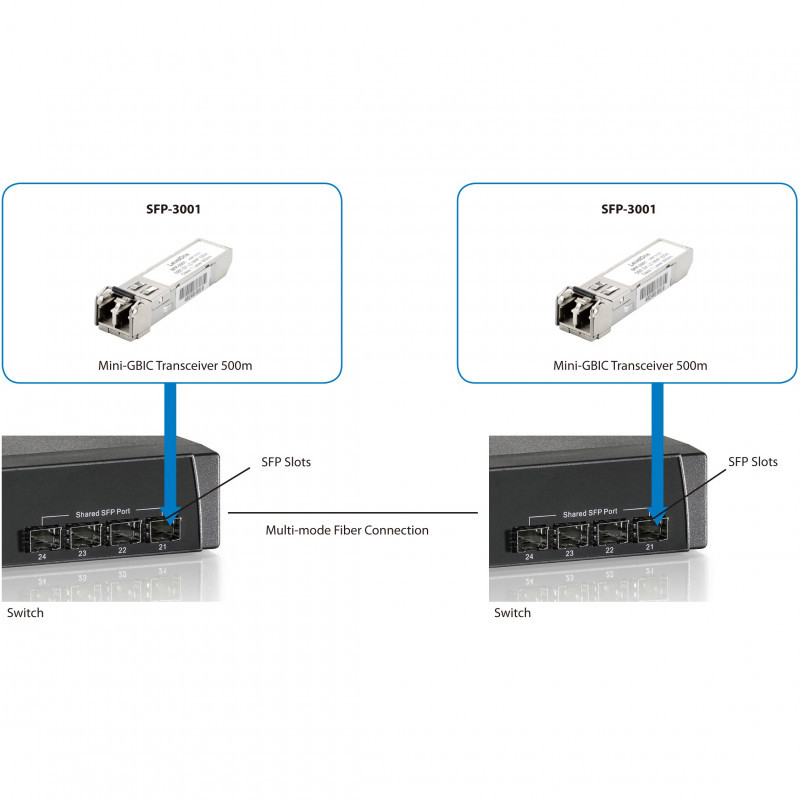

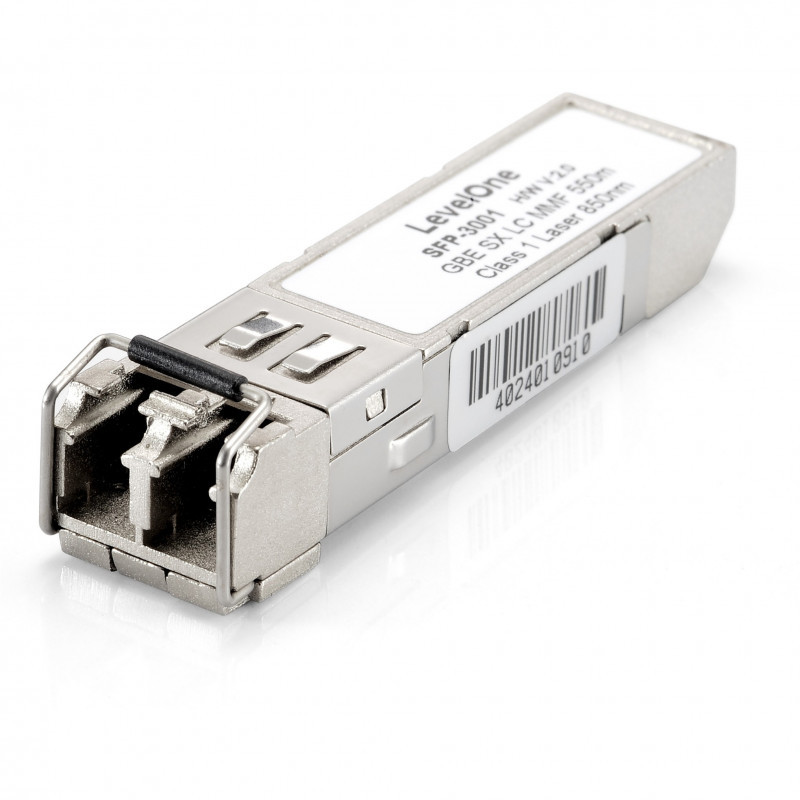

"LevelOne 1.25Gbps Multi-mode SFP Transceiver, 500m, 850nm. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Input voltage: 3.3 V, Maximum voltage: 6 V, Maximum current: 0.3 A. Compliance certificates: RoHS, Safety: EN 60825-1, Certification: CE, FCC. Width: 57 mm, Depth: 12 mm, Height: 13.7 mm. Quantity per pack: 1 pc(s)"\n"LevelOne SFP-3001 is a high performance and costeffective multi-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bidirectional data transfer rate on a single duplex fiber core. For use with 50 and 62.5 micron fiber cables, it can reach a distance of up to 550 meters.

- 850nm VCSEL
- Data Rate: 1.25Gbps
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free

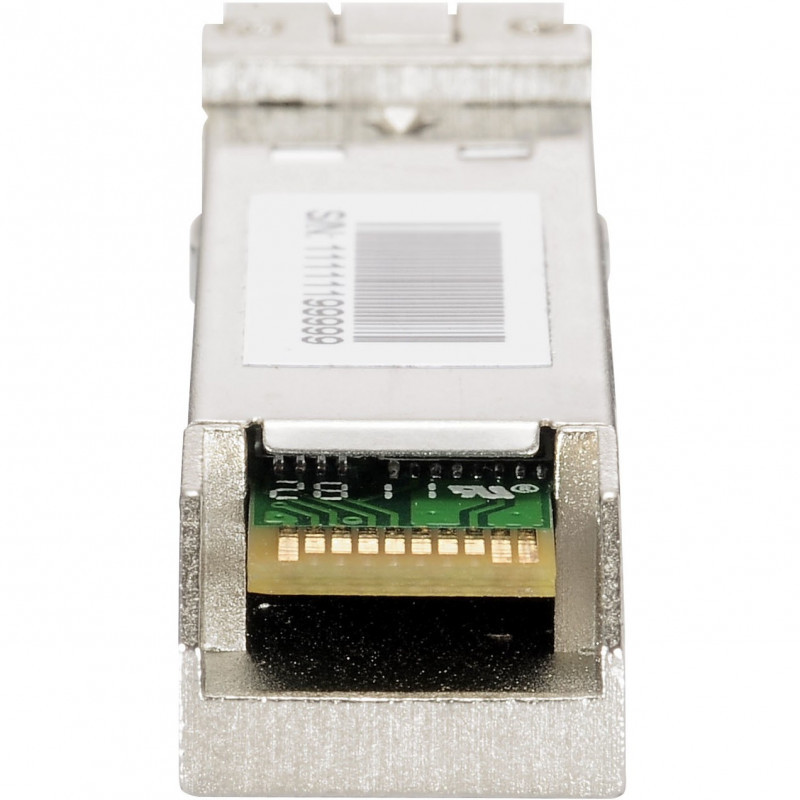

- AC/AC Differential Electrical Interface
- Compliant with Multi-Source Agreement(MSA)

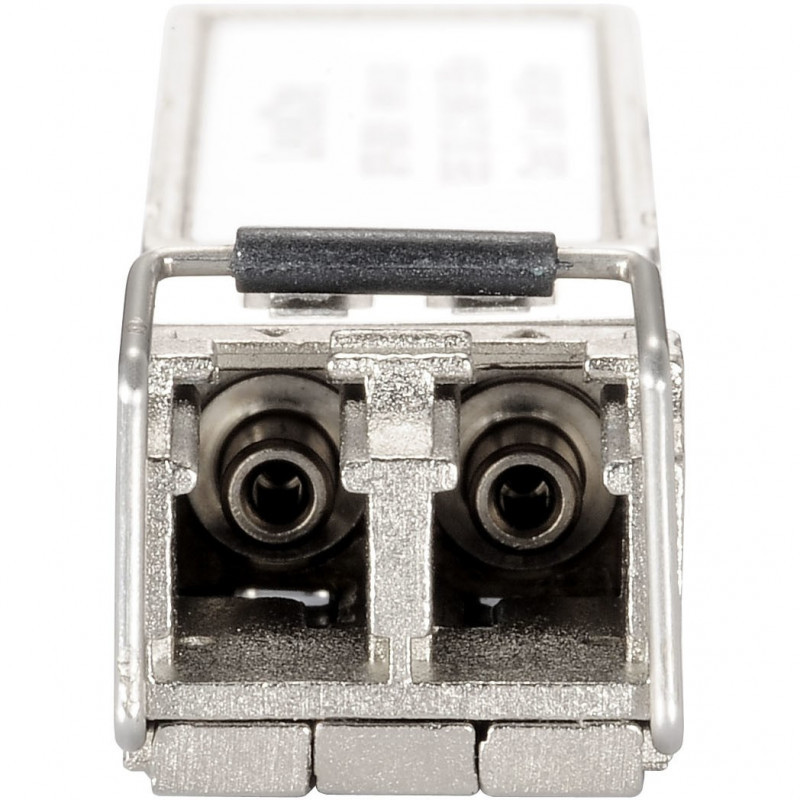

- Duplex LC Connector
- Compliance with specifications for IEEE 802.3z Gigabit Ethernet at 1.25Gbps
- Compliance with ANSI specifications for Fiber Channel applications at 1.06bps
- No configuration or installation software required
- Eye Safety Designed to meet LASER Class 1 comply with EN60825-1"
