"Homematic IP HmIP-ESI-IEC. Connectivity technology: Wired, Maximum transfer distance: 300 m, Product colour: Black, White. Width: 39 mm, Depth: 29 mm, Height: 109 mm. Package width: 48 mm, Package depth: 184 mm, Package height: 140 mm"\n"With the Homematic IP interface for gas meters you always know how
much gas you are using at home. The data from the electricity meter is
always displayed in the Homematic IP app in real time. The measurement
data collected also enables you to monitor long-term consumption. The
interface can be installed directly on your electricity meter in just a few
steps.

ALWAYS KNOW HOW MUCH YOU ARE USING
The Homematic IP app provides you with a comprehensive overview of your energy consumption at
home. In combination with the interface for smart
meters, you can view the latest electricity consumption details directly on your smartphone. You can
mount the device on your electricity meter very easily.
The measurement data collected also enables you to
look back over your consumption levels over a longer
period of time, which means you will have no surprises when your next electricity bill arrives.
And best of all, by permanently measuring the energy data in your home, any number of actions can
be triggered. For example, if electricity is fed in via a
connected PV system, a Homematic IP actuator can
switched on automatically so that the electricity generated is used in your home. This makes your home
truly smart!

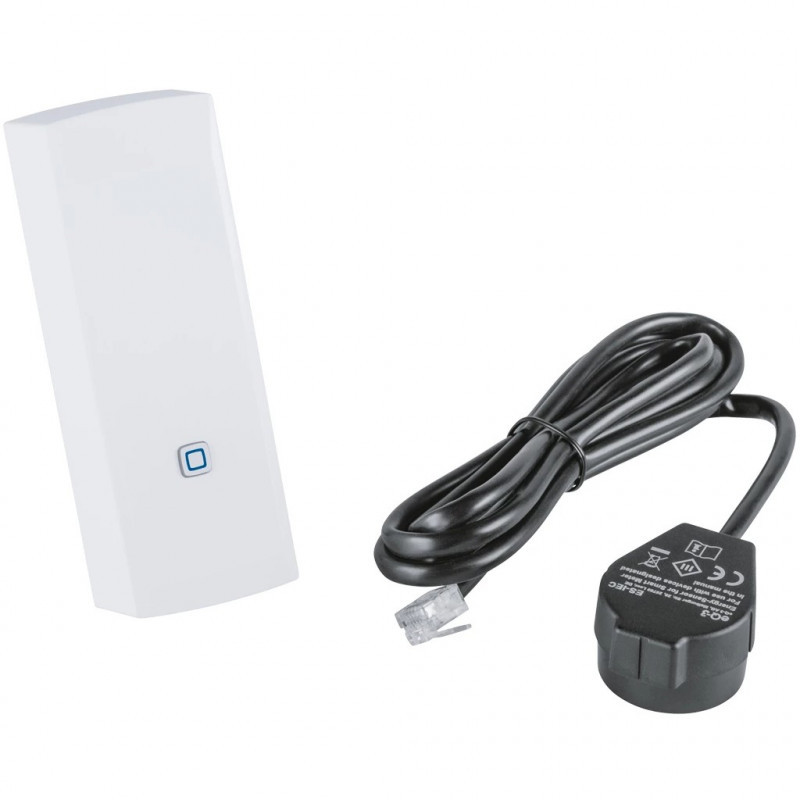

EASY MOUNTING WITHOUT PREVIOUS KNOWLEDGE
You can easily mount the interface for smart meters on
your electricity meter yourself: Electronic home meters are equipped with an optical data interface in accordance with IEC 62056-21. A metal plate surrounds
this information interface so that the magnetic reader
head can be easily attached. The magnetic sensor is
simply attached here. The sensor is then connected to
the interface and integrated into your Smart Home via
the app – and that’s it!

ALWAYS UP TO DATE
The latest electronic home electricity meters are usually equipped with a data interface via which you can
easily read out the energy consumption data. The data
is acquired by the sensor and can then be retrieved by
the app.
The device is compatible with all modern measurement equipment with an information interface (mME
in accordance with IEC 62056-21). The D0 Mode A to
D and SML protocols are supported. The Idis CII protocol (Austria) is not supported.
All meter readings and the current performance are
transmitted. The device can be used in combination
with feed-in and consumption meters, bi-directional
meters, single tariff meters and dual tariff meters."
