Aprašymas

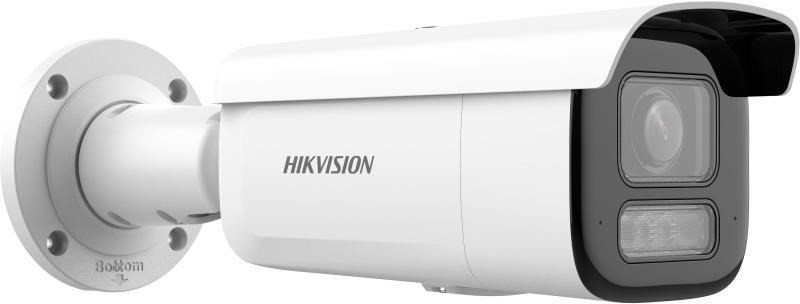

Modelis: DS-2CD2687G2HT-LIZS, 2.8-12mm, Bullet, baltos spalvos Rezoliucija: 8MP Objektyvas: 2.8-12 mm, horizontalus FOV: 112.3° to 41.2° WDR: 130dB Technologija: ColorVu IR pašvietimas: iki 60 m. Objektyvas: Varifokalinis motorinis Vieta microSD talpai: Taip, 512GB Darbo sąlygos: -30 °C iki 60 °C Vaizdo suspaudimas: H.265+ Saugos lygis: IP67 Maitinimas: PoE Aprašymas: Kamera • Sensorius: 1/1.8" Progressive Scan CMOS • Maks. rezoliucija: 3840 × 2160 • Min. apšvietimas: 0.0028 Lux @ (F1.2, AGC ON),0 Lux with light • Užrakto greitis: 1/3 s to 1/100,000 s • Day & Night: IR cut filter • Kampo keitimas: Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360° Lęšis • Lęšio tipas: Varifocal lens, motorized lens, 2.8 to 12 mm • Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1° to 23.1°, diagonal FOV 137.4° to 47.3° • Lęšio montavimas: Integrated • Rainelės tipas: Fixed • Diafragama: F1.2 • Ryškumo gylis: 1m to infinite DORI: Wide: D: 87 m, O: 35 m, R: 17 m, I: 9 m Tele: D: 216 m, O: 86 m, R: 43 m, I: 22 m Apšvietimas • Papildomo apšviešimo tipas: IR,White Light • Papildomo apšvietimo diapazonas: Up to 60 m • Išmanus papildomas apšvietimas: Yes • IR bangos ilgis: 850 nm Vaizdas • Pagrindinis srautas: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps(3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) • Antrinis srautas: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) • Trečias srautas: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. • Vaizdo suspaudimas: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 *Third stream is supported under certain settings. • Vaizdo bitų greitis: 32 Kbps to 16 Mbps • H.264 tipas: Baseline Profile, Main Profile, High Profile • H.265 tipas: Main Profile • Bitų greičio kontrolė: CBR/VBR • Scalable Video Coding (SVC): H.264 and H.265 encoding • Region of Interest (ROI): 1 fixed region for main stream and sub-stream Garsas • Garso suspaudimas: G.711ulaw/ G.711alaw/ G.722.1/ G.726/ MP2L2/ PCM/MP3/ AAC-LC • Garso bitų greitis: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) • Garso atrankos dažnis: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz • Pašalinių garsų šalinimas: Yes Internetas • Protokolai: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP • Tiesioginis vaizdo žiūrėjimas: Up to 6 channels • API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP • User/Host: Up to 32 users. 3 user levels: administrator, operator and user • Saugumas: assword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) • Vidinė atmintis: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) • Klientas: iVMS-4200, Hik-Connect, Hik-Central • Naršyklė: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Nuotrauka • Nuotraukos parametrų keitiklis: yes • Nuotraukos nustatymai: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser • Diena/Naktis režimas: Day, Night, Auto, Schedule • Nuotraukų pagražinimas: BLC, HLC, 3D DNR • SNR: > /= 52 dB • Wide Dynamic Range (WDR): 130 dB • Privatumo kaukė: 4 programmable polygon privacy masks Sąsaja • Interneto sąsaja: 1 RJ45 10 M/100 M self-adaptive Ethernet port • Vidinė atmintis: Built-in memory card slot, support microSD card, up to 512 GB • Garsas: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KOhm, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ohm, interface type: non-equilibrium • Signalizacija: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) • Perkrovimo mygtukas: Yes Funkcijos • Pagrindinės funkcijos: Motion detection (human and vehicle targets classification), video tampering alarm, exception • Išmaniosios funkcijos: Scene change detection • Sąsaja: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning, trigger alarm output Išmaniosios funkcijos • Veido atpažinimas: Yes • Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle) Pagrindinis • Sistemos parametrai: 12 VDC ± 25%,1.21 A, max. 14.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W • Medžiaga: Front cover: Metal, body: Metal, bracket: Metal • Dydis: 298 mm × 97.9 mm × 95.7 mm (11.8" × 3.9" × 3.8") • Pakuotės dydis: 386 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1") • Svoris: Approx. 1085 g (2.4 lb.) • Svoris su įpakavimu: Approx. 1639 g (3.6 lb.) • Sandėliavimo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) • Darbo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) • Kalba: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian • Pagrindinės funkcijos: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter Patvirtinimai • EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 • Saugumas: UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 • Aplinkosauga: CE-RoHS (2011/65/EU) • Apsauga: IP67: IEC 60529-2013
