| TYPE |

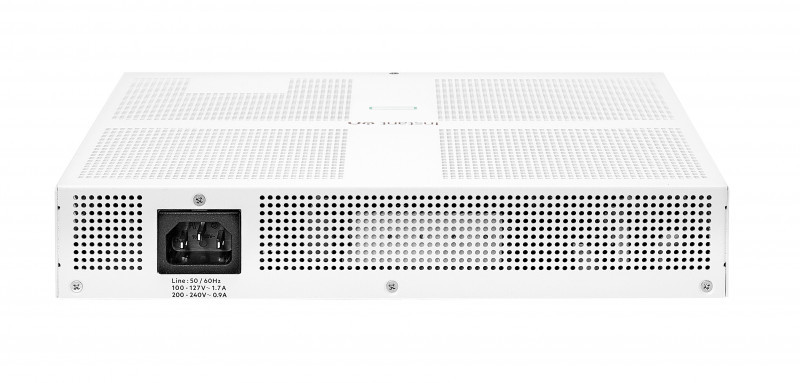

Aruba Instant On 1930 Series |
| Standard |
IEEE 802.3 Type 10BASE-TIEEE 802.3u Type 100BASETXIEEE 802.3ab Type 1000BASE-T |
| Interface |
8x RJ-45 autosensing 10/100/1000 class 4 PoE ports2x SFP+ 1GbE ports |
| Data Transfer Rate |
100 Mb Latency: < 5.2 µs1000 Mb Latency: < 3.0 µsThroughput: up to 14.88 MppsSwitching capacity 20 GbpsRouting table size: 32 entries |
| Duplex |
Half / Full |
| MAC Address Table |
8 K |
| Data Buffer |
1.5 MB |
| Power |
Voltage: 100-127 / 200-240 VAC (50/60 Hz)Current: 0.8 / 1.6 APower: 11.7 W (idle) / 150.2 W (max) |
| WIDTH |
254 mm |
| Depth |
254 mm |
| HEIGHT |
43.9 mm |
| Manufacturer Datasheet |
https://www.arubainstanton.com/files/DS_AIO_1930SwitchSeries.pdf |
| Form Factor |
Rack 1U |
| Ethernet Technology |
Gigabit Ethernet |
| Uplink Port Type |
SFP+ |
| Number of Network Ports |
8 |
| Layers Supported |
2 |
| MANAGEMENT |
Smart |
| Manufacturer Logo URL |
https://www.tdbaltic.ee/images/manufacturers/HPE.jpg |
| Product Highlights |
- Seven advanced smart managed Layer 2+ Gigabit switches for high-performance connectivity
- Non-PoE and Class 4 PoE (i.e. PoE+) 8-, 24- and 48-port models for deployment flexibility
|
| Switch type |
Managed |
| Switch layer |
L2/L3/L4 |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| ARP Inspection |
Yes |
| Basic Switching RJ-45 Ethernet Ports Quantity |
24 |
| SFP module slots quantity |
2 |
| Port mirroring |
Yes |
| Flow control support |
Yes |
| Spanning tree protocol |
Yes |
| VLAN Support |
Yes |
| Number of VLANs |
4093 |
| Jumbo Frames support |
Yes |
| Jumbo Frames |
9216 |
| DHCP Features |
DHCP client, DHCP snooping |
| Access Control List (ACL) |
Yes |
| IGMP snooping |
Yes |
| SSH/SSL support |
Yes |
| Multicast Support |
Yes |
| Product colour |
White |
| Built-in Processor |
Yes |
| INTERNAL MEMORY |
512 MB |
| Flash Memory |
256 MB |
| Operating Temperature (T-T) |
0 - 40 °C |
| Storage Temperature (T-T) |
-40 - 70 °C |
| Operating Relative Humidity (H-H) |
15 - 95% |
| Storage Relative Humidity (H-H) |
15 - 95% |
| WIDTH |
43.9 mm |
| HEIGHT |
254 mm |
| Weight |
1.16 kg |
| Warranty Terms |
12 months |
| Product condition |
Original |
