Aprašymas

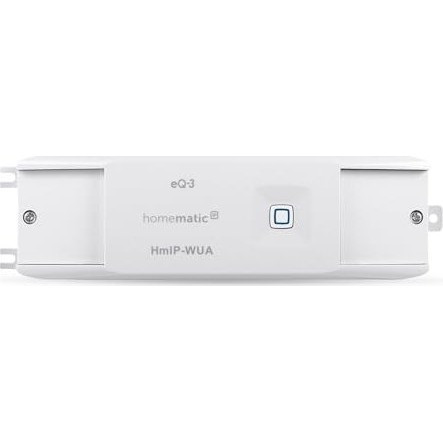

"Homematic IP HmIP-WUA. Product type: Switching/dimming actuator, Frequency: 869.65 MHz, Maximum indoor range: 240 m. Power source type: AC, Input voltage: 230 V, Input frequency: 50 Hz. Width: 51 mm, Depth: 187 mm, Height: 31 mm"\n"The mains-powered Homematic IP Universal actuator can be used in a variety of ways in the smart home. The 0-10 V and 1-10 V interfaces allow individual regulation of controlled living space ventilation systems (KWL) or analogue controllable dimmers for creating the right lighting mood. Brightness and time profiles are set up individually via the Homematic IP app for convenient switching.

TWO PARALLEL SWITCHING OUTPUTS
The mains-powered Universal actuator has a switching output with a 0-10 V interface, which can be used to conveniently control, for example, electronic ballasts or controlled living space ventilation systems (KWL). It is also possible to connect a consumer (e.g. dimmer) to the 1-10 V interface connected in parallel.

CONVENIENT & FLEXIBLE CONTROL
The Universal actuator is easy to control via the Homematic IP app. For example, KWL controllers can be conveniently set up via time profiles. An additional paired Homematic IP wireless pushbutton can also be used to easily provide surge ventilation at the touch of a button. While ventilation is at the normal level during the day, the system can be set in such a way as to reduce it at night in order to prevent ventilation noise. Lights can also be switched on or off via time profiles and with the desired dimming level.

ADDITIONAL RELAY
As soon as a conventional consumer is connected, this can additionally be switched on or off with the aid of the relay alongside the power supply. Unlike conventional actuators, the connected device can thus be completely de-energised.

EASY TO INSTALL
The robust housing allows the Homematic IP Universal actuator to be mounted on a wall or in a suspended ceiling. For this purpose, the device can be fastened with commercially available screws and dowels using the fastening lugs on the side."
