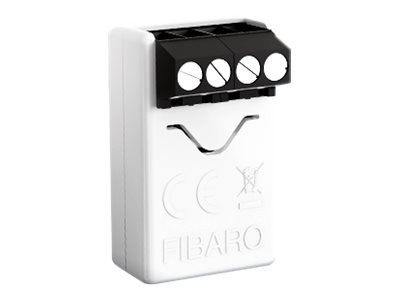

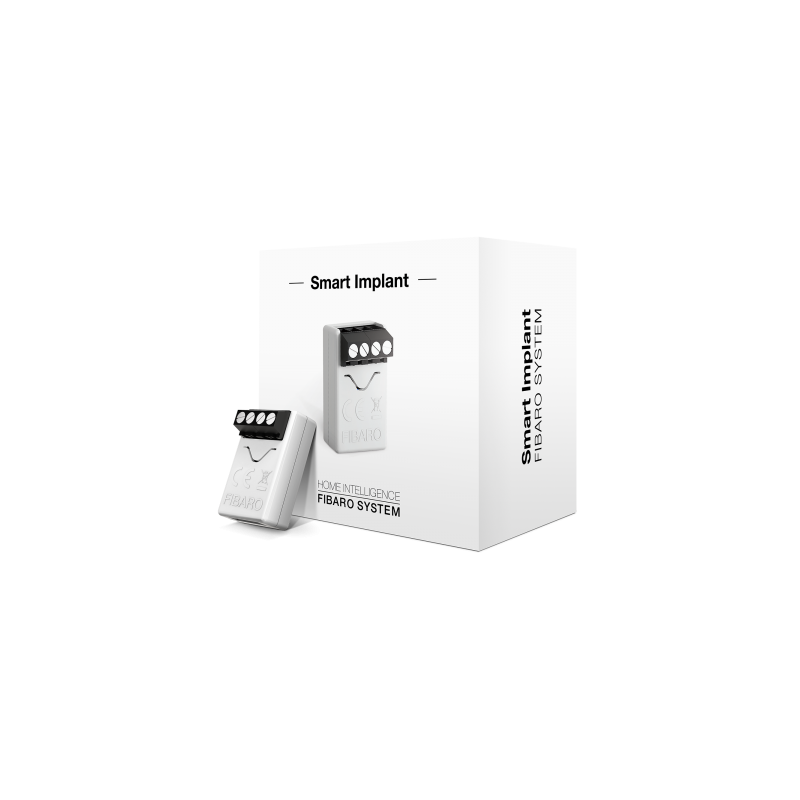

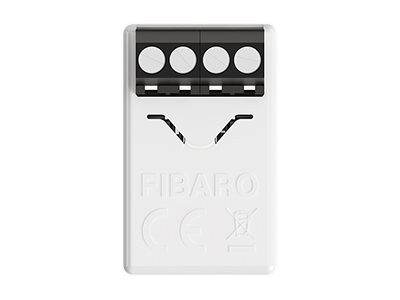

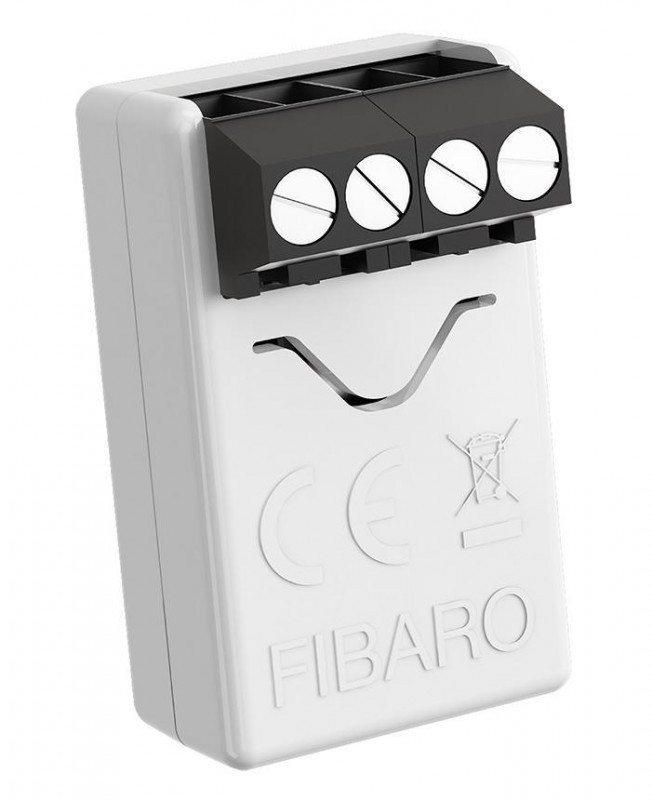

Fibaro | Smart Implant | Z-Wave EU | White
Prekė gali skirtis nuo pavaizduotos paveikslėlyje, taip pat paveikslėlyje gali būti dalių, kurių nėra prekės komplektacijoje.
Prekės kodas: #23650
Garantija: 24 mėn.
-
Informacija apie prekę
-
Papildoma informacija
| Embeeded battery |
No |
| WEEE tax |
No |
| Packing quantity |
1 |
| Bruto svoris |
0.04 |
| Gross depth (mm) |
65 |
| Gross width (mm) |
40 |
| Gross height (mm) |
65 |
| Volume (m3) |
0.000169 |
| Neto svoris |
0.03 |
| Tare weight (kg) |
0.01 |
| Lizdų kiekis |
1 |
| Gaminio spalva |
White |
| Apsauga nuo perkrovos |
Yes |
| Perdavimo galingumas |
1 |
| Valdoma nuotoliniu būdu |
Yes |
| Tipas |
Actors |
| Specialios funkcijos |
Whether to control your garage door or the heating system, as an intelligent supplement to your alarm system or simply to make every device smart in your home. The FIBARO Smart Implant can also be connected to sensors in the garden that the Smart Home does not end at the front door. As a further development of the Universal binary Sensor, the FIBARO Smart Implant controls the connected device, can be used for scene control, has a temperature sensor and is compatible with binary sensors. In addition to controlling devices (ON/OFF), the device reads sensor data and amplifies the existing Z-Wave network. |
| Kitos savybės |
Power supply 9-30V DC ±10%. Inputs 2 0-10V or digital inputs 1 serial 1-wire input. Outputs 2 potential-free outputs. Supported digital sensors 6 DS18B20 or 1 DHT22. Maximum current on outputs 150mA. Maximum voltage on outputs 30V DC / 20V AC ±5%. Built-in temperature sensor measurement range -55°C–126°C. Operating temperature 0–40°C. Radio frequency 868.4 or 869.8 MHz EU. Radio ransmit power max. 7 dBm (EIRP). Range up to 50m outdoors up to 40m indoors (depending on terrain and building structure). Dimensions (Length x Width x Height) 29 x 18 x 13 mm. |
| Garantija |
24 |
| Gamintojo prekės modelio pavadinimas |
Smart Implant |
| Ryšio technologija |
Wireless |
| Palaikomi tinklo protokolai |
Z-Wave EU |
| Paper/Pasteboard |
8 |
| Plastic (No PET) |
2 |
| Integruota baterija |
No |
| EEĮ atliekų mokestis |
No |
| Kiekis pakuotėje |
1 |
| Pakuotės gylis (mm) |
65 |
| Pakuotės plotis (mm) |
40 |
| Pakuotės aukštis (mm) |
65 |
| Tūris (m3) |
0.000169 |
| Taros svoris (kg) |
0.01 |
| Popierius/Kartonas |
8 |
| Plastikas (be PET) |
2 |
| Bruto svoris |
0.029 |
| Pakuotės plotis (mm) |
31 |
| Tūris (m3) |
0.000130975 |
| Neto svoris |
0.019 |
| Palette Qty |
13193 |
