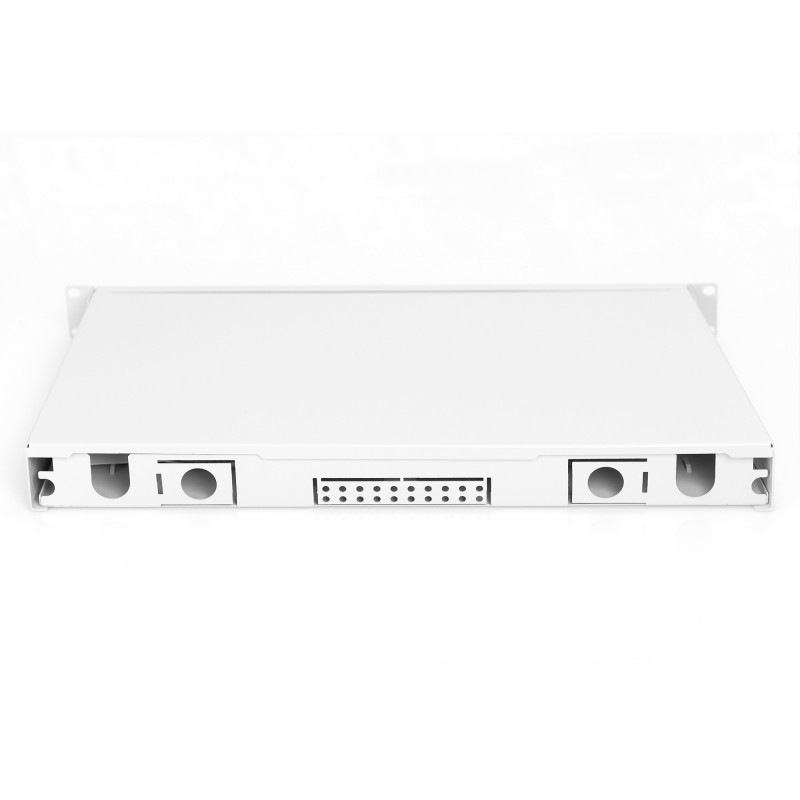

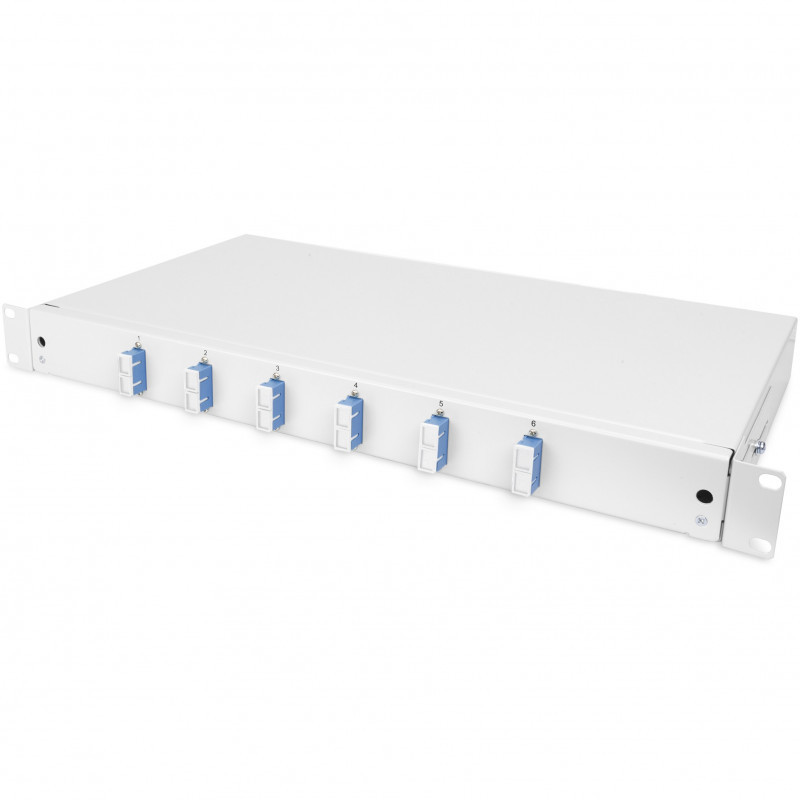

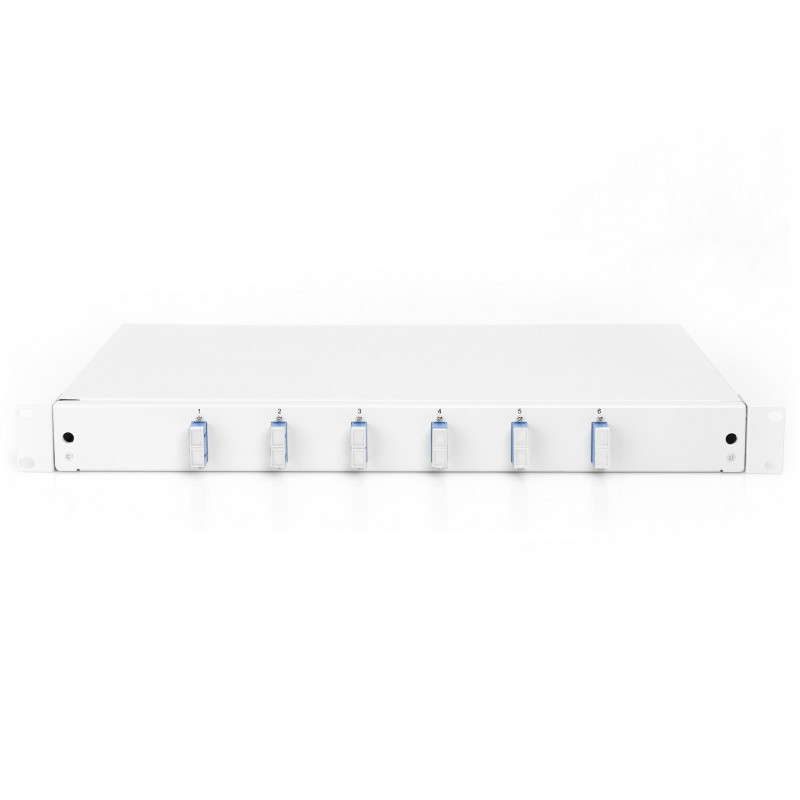

"Digitus Fiber Optic Splice Box, Equipped, SC, OS2. Fiber optic connector: SC, Fibre optic type: OS2. Product colour: Grey, Material: Steel, Mounting: Rack mounting. Width: 483 mm, Height: 44.5 mm, Depth: 280 mm. Package width: 315 mm, Package length: 51.5 cm, Package depth: 515 mm. Country of origin: China"\n"- Splice boxes are installed permanently in the network cabinet to bundle the fiber optic cables that converge there - comparable to a patch panel for
- In the network cabinet, the signal from the fiber optic cable can be connected to switches, media converters, routers, modems, servers, SFP modules or FTTH / FTTB via patch cables.

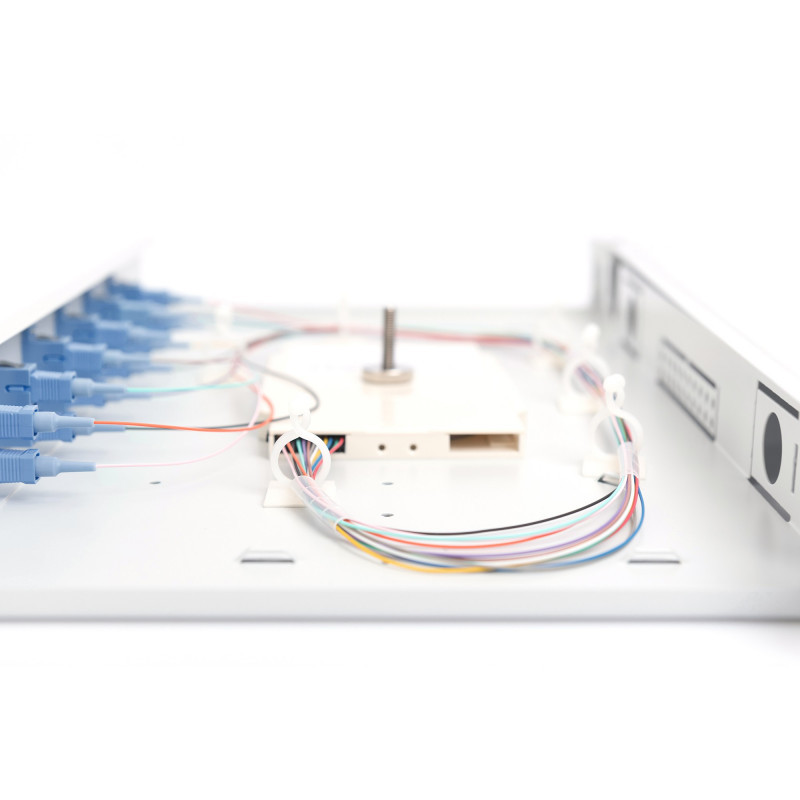

- The fiber pigtails used are colour-coded in accordance with DIN IEC 60304 and inserted into the splice cassette(s).
- The housing material used is 1 mm thick sheet steel, which is painted or powder-coated in the color grey (RAL 7035).

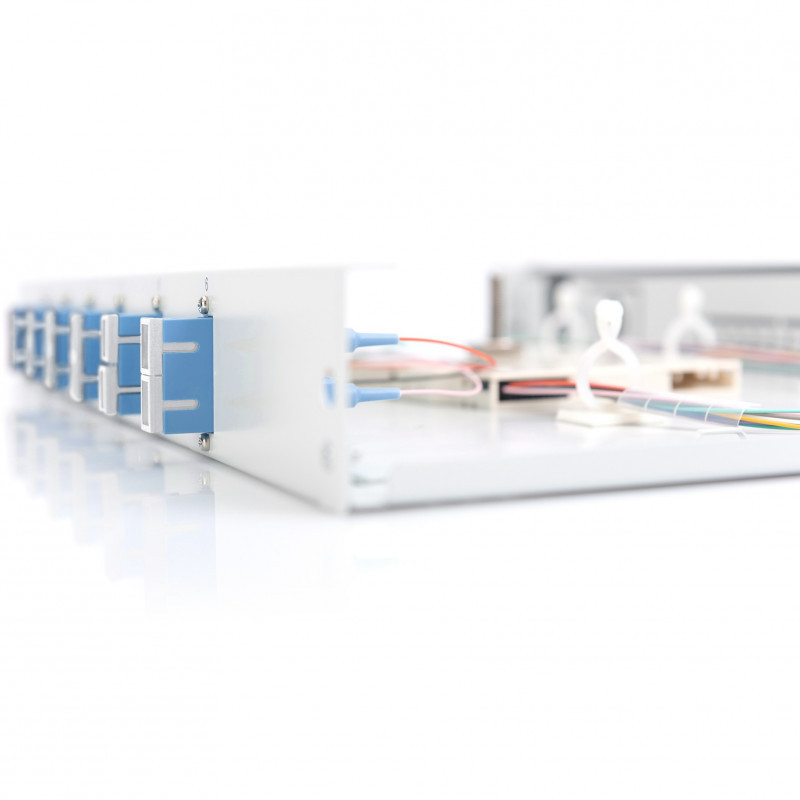

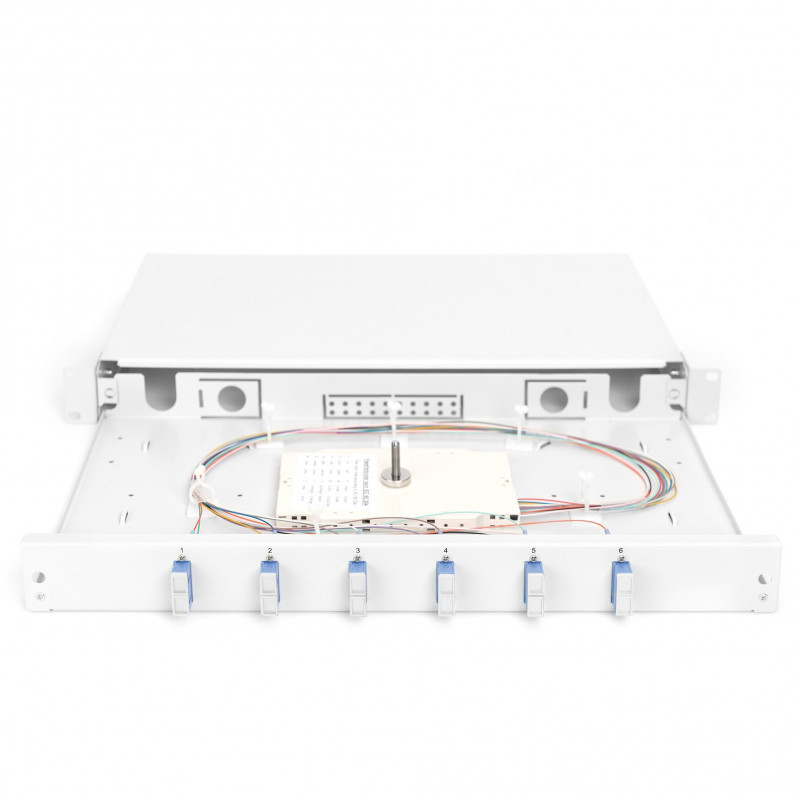

- The splice box is already prefabricated - an assembled splice cassette and corresponding couplings for the front panel are already installed.

FO splice box, 1U, equipped, 6x SC DX, OS2,incl. splice cassette, colored pigtails, couplers"
