Aprašymas

"Digitus 10"" Gigabit Ethernet Switch, 16-Port, Unmanaged. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting, Form factor: 1U"\n"Expands networks quickly and cost-effectively by 16 Gigabit ports, ideal for compact 10"" distribution solutions.

- 16 × 10/100/1000Base-T RJ45 ports
- Simple plug & play installation
- 10"" rack mounting (25 cm)
- Switching capacity: 32 Gbps
- Forwarding rate: up to 1,488 Mpps per port
- Store-and-forward switching
- Non-blocking architecture
- IEEE 802.3x Flow Control
- Auto-negotiation
- Auto MDI/MDI-X on all ports
- 8K MAC address table

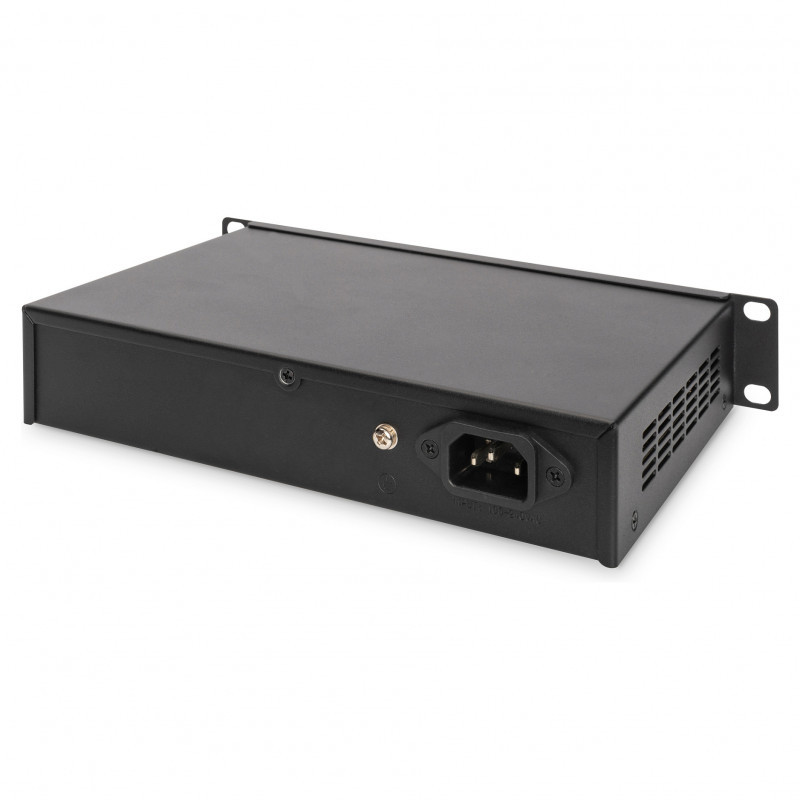

- Fanless metal housing
- Power consumption: max. 15 W

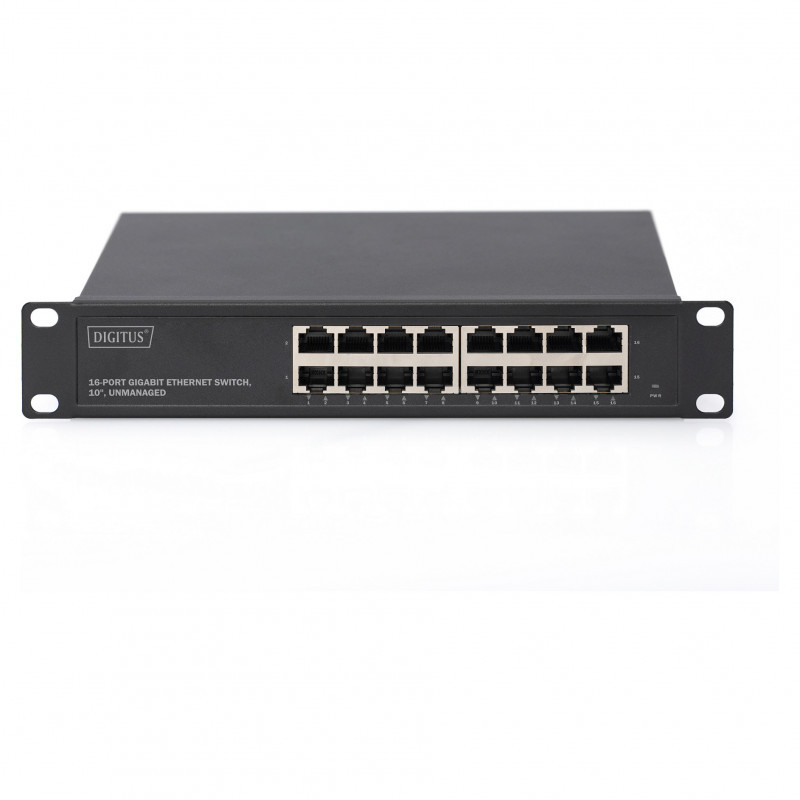

The DIGITUS® DN-80115-1 is a compact 16-port Gigabit switch for high-performance network infrastructures with many wired end devices. With 16 × 10/100/1000Base-T ports and a switching capacity of 32 Gbps, the device offers sufficient performance reserves for parallel data transmissions at high utilization rates. The switch operates as an unmanaged Layer 2 device and requires no configuration. Auto-negotiation automatically detects speed and duplex mode, while Auto MDI/MDI-X enables the use of different cable types without manual adjustment. The non-blocking architecture combined with store-and-forward technology ensures reliable, packet-checked data forwarding. IEEE 802.3x Flow Control (Full Duplex) and Back-Pressure (Half Duplex) support stable performance even with increased network load. The fanless metal housing ensures silent operation and reduces mechanical wear parts. Thanks to its 10"" compatibility (1U), the switch is particularly suitable for compact network cabinets, wall distributors or structured building cabling."
