Aprašymas

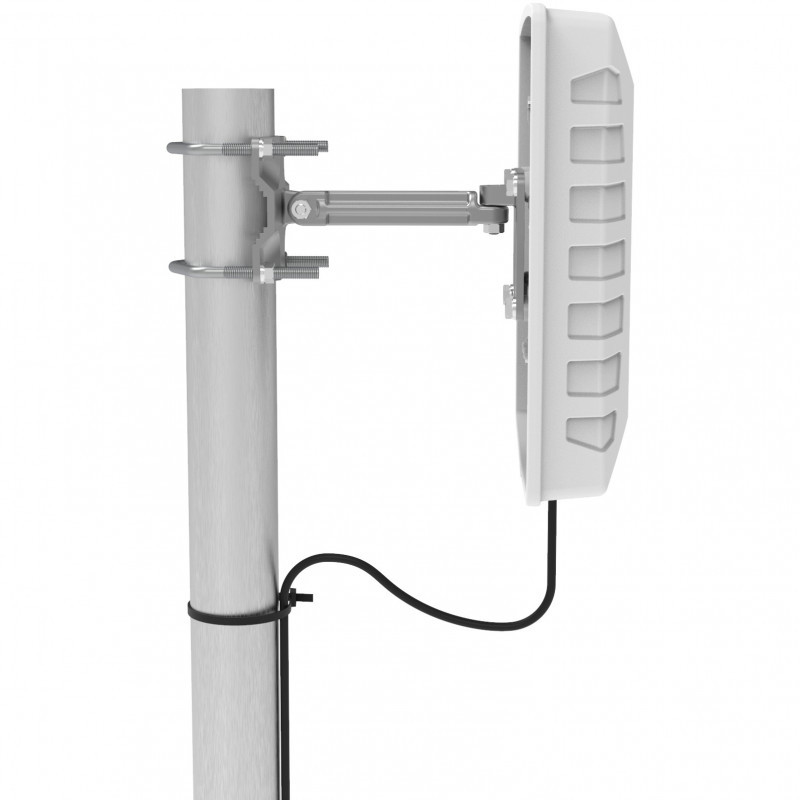

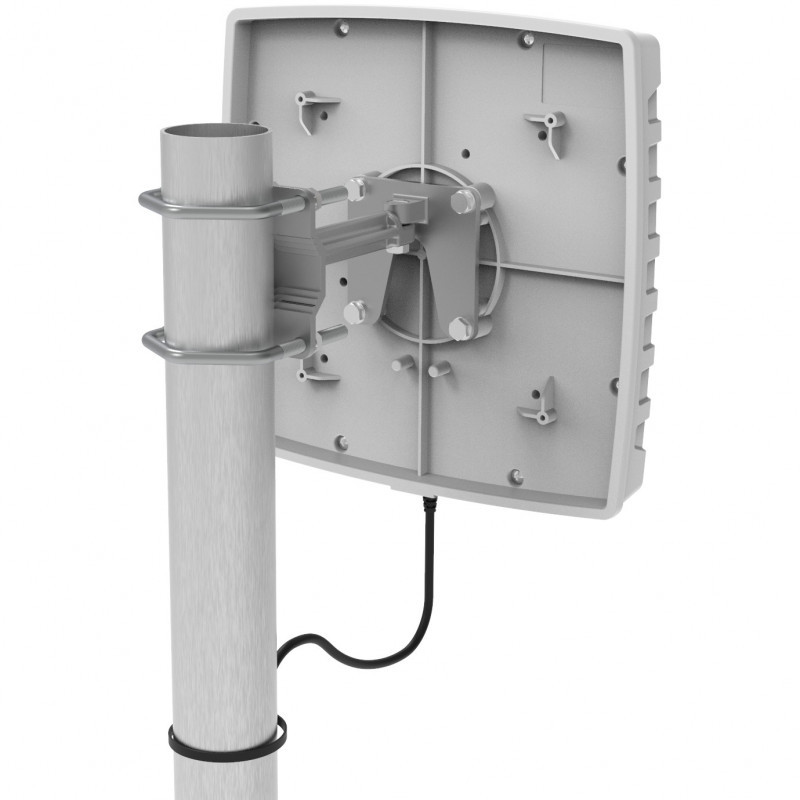

"Poynting PATCH-25. Antenna gain level (max): 8.8 dBi, Frequency band: 0.86 - 0.96 GHz, Impedance: 50 Ω. Antenna type: Directional antenna, Antenna connector type: N-type, Connector gender: Female. Compliance certificates: CE, RoHS, Certification: MIL-STD 810G/ASTM B117. Width: 257 mm, Depth: 253 mm, Height: 56 mm. Package width: 335 mm, Package depth: 250 mm, Package height: 95 mm"\n"The PATCH-25 antenna is designed for seamless operation across both EU and USA RFID bands, ensuring reliable and efficient performance. With a water-resistant design and easy installation, this antenna is ideal for RFID applications requiring stable connectivity in various environments. Its circular polarisation allows for consistent reading in any orientation, enhancing usability.

- Dual-Region RFID Compatibility: Covers both EU and USA RFID frequency bands for global usability.
- Circularly Polarised for Reliable Reading: Ensures accurate RFID tag detection in any orientation.
- Enhanced Indoor GSM Coverage: Circular polarisation improves signal reception for indoor GSM applications.
- Optimised VSWR & Gain Performance: VSWR is typically less than 1.3:1, providing a return loss better than 20 dB.
- Water-Resistant & Easy to Install: Designed for durability and simple integration into various environments.

The PATCH-25 is a unique and high-performing solution for RFID applications, offering superior VSWR and gain specifications for stable and efficient operation."
