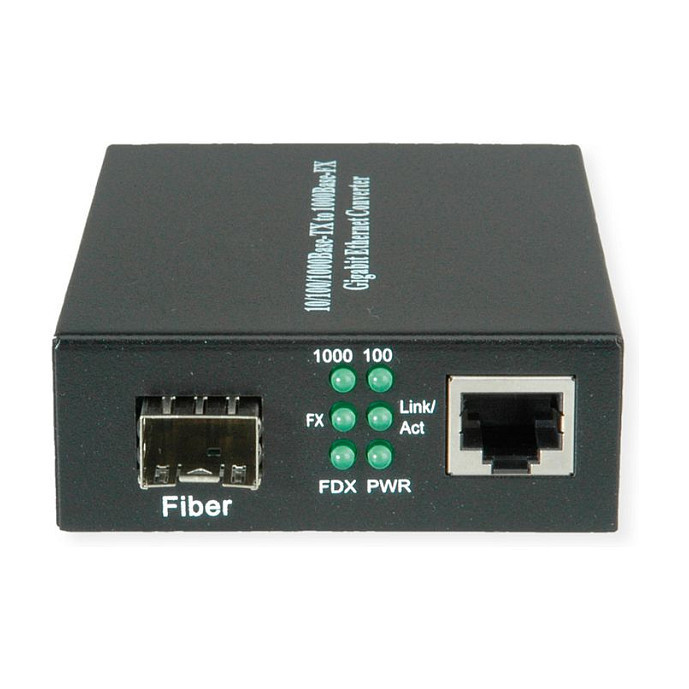

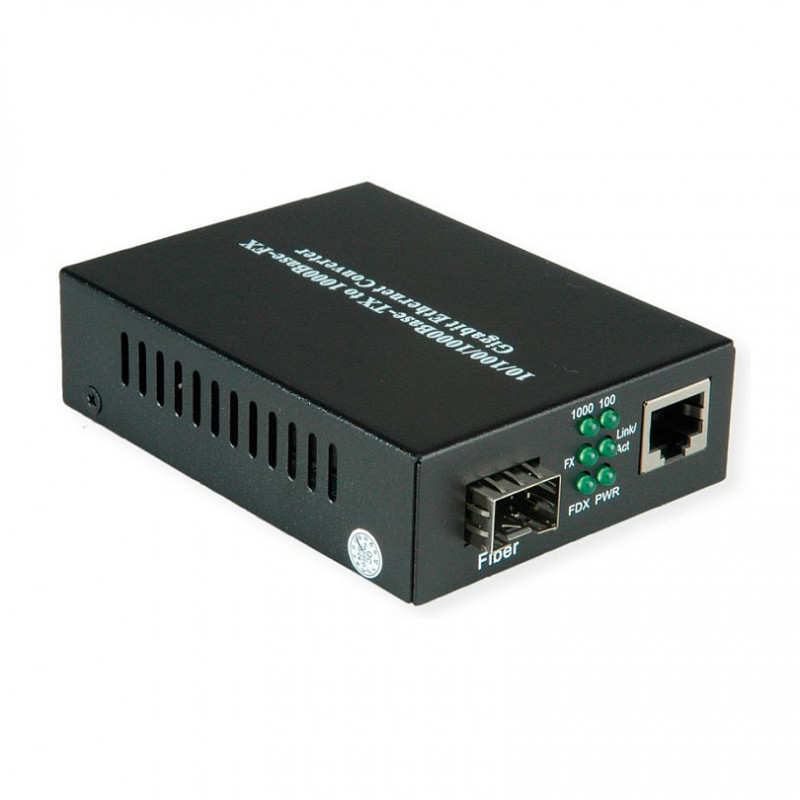

"VALUE 21.99.1199. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, 1000Base-TX, 1000Base-X, Converter output interface: 100Base-FX. Fiber mode structure: Multi-mode, Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm. Product colour: Black. Fiber optic connector: LC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 1 A, Power consumption (typical): 3 W"\n"Converts a 10/100/1000 Mbit/s TP port to Gigabit Ethernet fiber - single mode or multimode, depending on the SFP used
Supports full wire speed conversion for 10/100/1000 Mbit/s speed and media types
Protocols: IEEE802.3 Ethernet / IEEE802.3i 10Base-Tx / IEEE802.3u 100Base-Tx/Fx / IEEE802.3z 1000Base-X / IEEE802.3ab 1000Base-Tx / IEEE802.3x Flow control

TP port:
- IEEE 802.3 10Base-T, IEEE 802.3u/3i/3z/3ab/3x
- Shielded RJ-45 jacks with auto MDI/MDI-X detection
- Auto-negotiation for speed and duplex auto detection
- Speed for 10/100/1000 Mbit/s, Full/half-duplex support

FX port:
- IEEE 802.3u 100Base-FX compliant
- Forced 100Mbit/s, Full-duplex
- For multimode fibre cable: 62.5/125µm and 50/125µm

Low power consumption: 3W

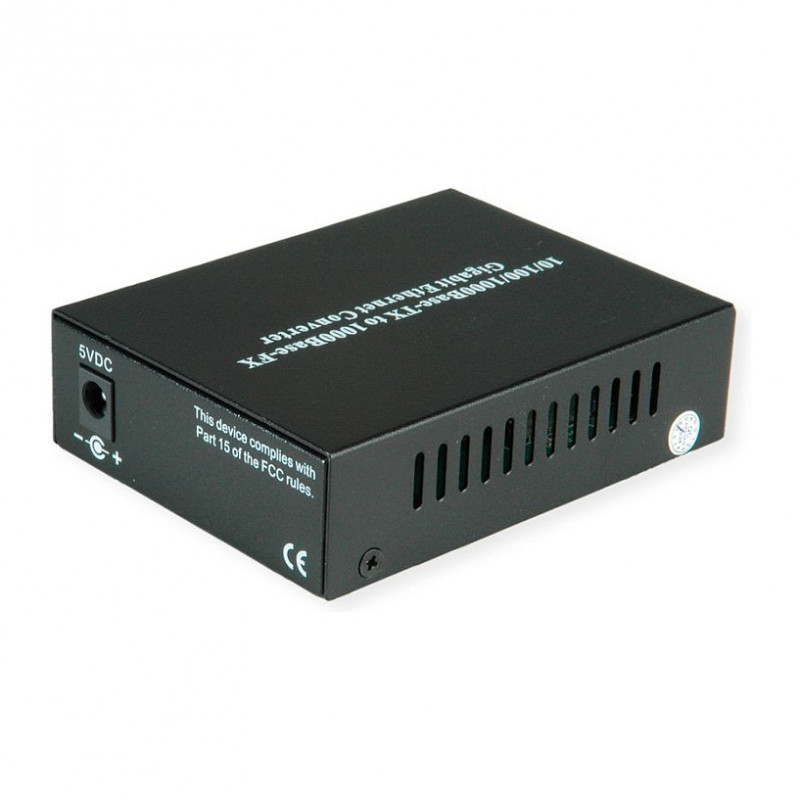

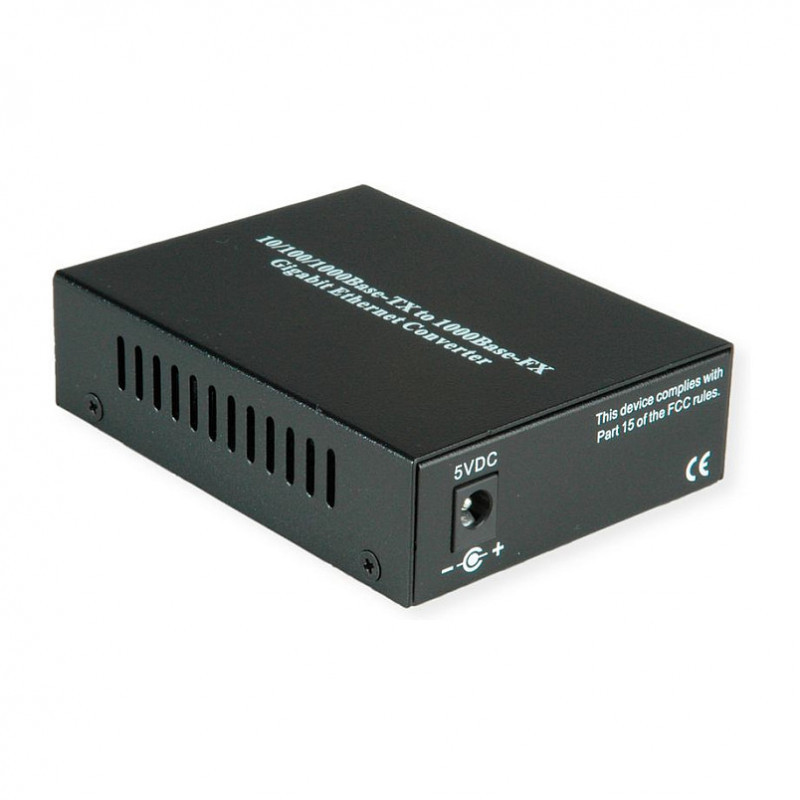

Power over included power supply (5VDC, 1A)
Remark: The converters do not offer a repeater function!

Contents: Converter, power supply, manual"
