Aprašymas

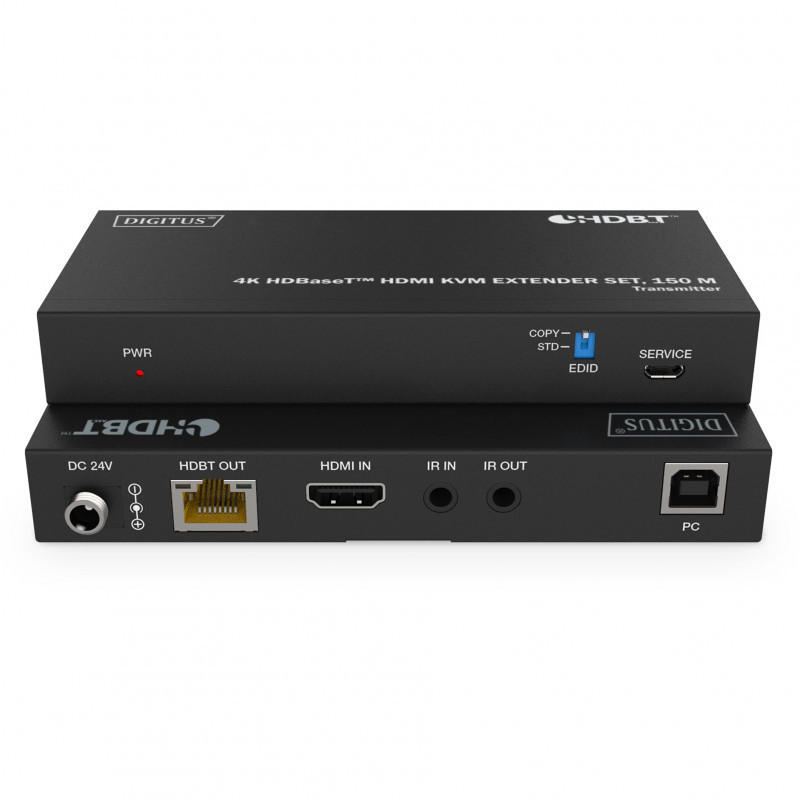

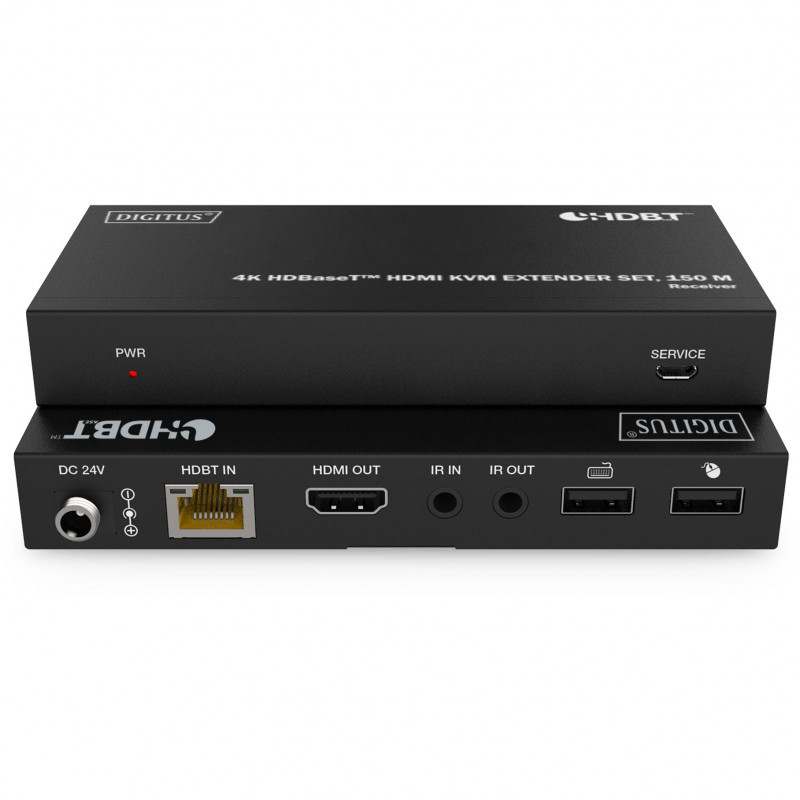

"Digitus 4K HDBaseT™ HDMI KVM Extender Set, 150 m. Type: Transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6, Cat7, Cat8. Connectivity technology: Wired, HDMI version: 2.0b, USB connector type: USB Type-A, USB Type-B. Power source type: DC, Operating voltage (transmitter): 24 V, Operating voltage (receiver): 24 V. Receiver dimensions (WxDxH): 140 x 65 x 18 mm, Receiver weight: 246 g, Transmitter dimensions (WxDxH): 140 x 65 x 18 mm. Package width: 245 mm, Package depth: 185 mm, Package height: 75 mm"\n"The HDBaseT™ HDMI Extender Set enables uncompressed, high-resolution AV signal transmission over large distances and offers KVM functionality (connection of mouse and keyboard)

- Supports HDBaseT™ 1.0 via CAT6A/7/8 cable up to 100 m
- Transmission distance - Full HD (1080p/60Hz): 150 m (max.)
- Transmission distance - UHD (4K/60Hz): 120 m (max.)
- Supports 4K2K/60Hz (4:4:4)
- Video bandwidth: 18 Gbps
- Connection of mouse and keyboard on receiver (2x USB 1.1) in order to control the signal source conveniently from the output display
- PoC (Power over Cable) - Only the unit requires an external power adapter
- EDID support (2 modes) - 1: Copy - HDMI output receiver / 2: Standard - 1080p, 2 channel
- Bi-directional IR signal transmission
- HDMI 2.0b / HDCP 2.2

The HDBaseT™ HDMI KVM Extender Set enables uncompressed, high-resolution AV signal transmission over large distances using a CAT6 (or higher) network cable. The maximum transmission distance is 150 m. Thanks to PoC, only one unit needs to be supplied with power by an external power adapter. The receiver unit features two USB (1.1) ports for connection of mouse and keyboard in order to control the signal source conveniently from the output display. Bi-directional IR transmission is also included as a feature."
